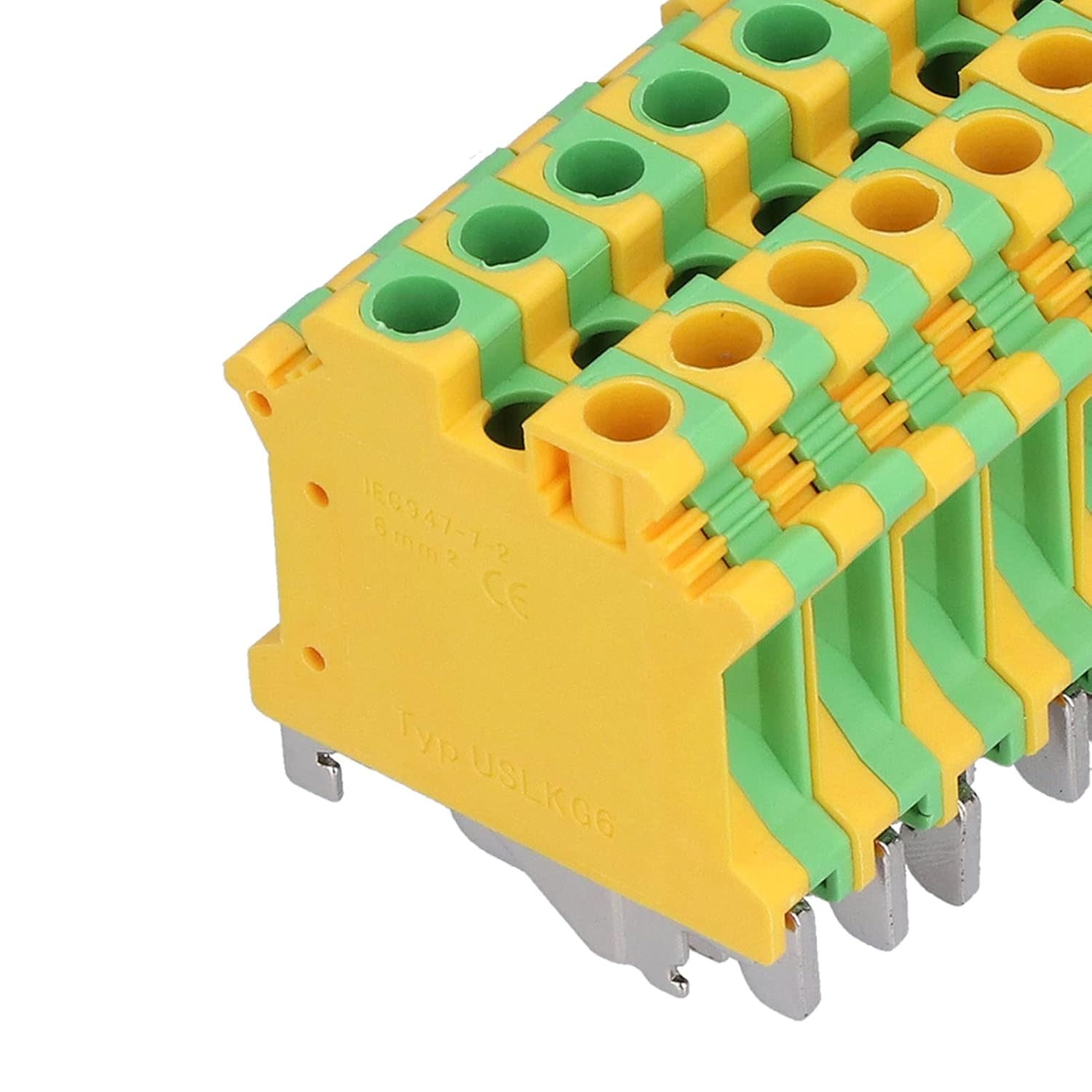

Terminal Block, Grounding Terminals Block DIN Rail Mount Terminal Terminal Kit for Electrical Connections for Wire Connection

Feature:1. 50Pcs in 1 Set: The kit includes 50pcs universal grounding terminal blocks, sufficient in quantity, easy to use and replace.2. Tin Plated Copper: The all copper tin plated terminal has good electrical conductivity and is not easy to heat up.3. ABS Shell: The shell is made of excellent ABS material, flame retardant and impact and safer to operate.4. DIN Rail Mount: Reasonable DIN rail mount structure, simpler conductor connection, often used for electrical connection.5. Die Casting These terminals are formed by integrated die casting, no welding gaps, anti stamping and not easy to oxidize.How to Use:1. Strip the insulation layer of the wire and put the wire into the tube terminal2. Insert slot screwdriver and turn counterclockwise to rotate the crimping wire to the bottom3. Insert the wire into the depth of the terminal hole4. Rotate clockwise to clamp the wire tightlySpecification:Item Type: DIN Rail Mount TerminalModel: USLKG-6Material: ABS + pure copperPurpose: Realize electrical connection, make wire connection more convenient for applicationCurrent: 37ANumber of Channels: 2 channelsWiring Mode: Side wiringConnection Technology: Screw crimping frame technologyWiring Area: 0.2-10mm²(hard wire)Wiring Area: 0.2-6mm²(soft wire)Marking Strip: ZB 8Stripping Length: Approx. 7mm / 0.3in Package List:50 x TerminalsNote:Do not use in wet wading areas!

• 50Pcs in 1 Set: The kit includes 50pcs universal grounding terminal blocks, sufficient in quantity, easy to use and replace.
• Tin Plated Copper: The all copper tin plated terminal has good electrical conductivity and is not easy to heat up.
• ABS Shell: The shell is made of excellent ABS material, flame retardant and impact and safer to operate.
• DIN Rail Mount: Reasonable DIN rail mount structure, simpler conductor connection, often used for electrical connection.
• Die Casting These terminals are formed by integrated die casting, no welding gaps, anti stamping and not easy to oxidize.
