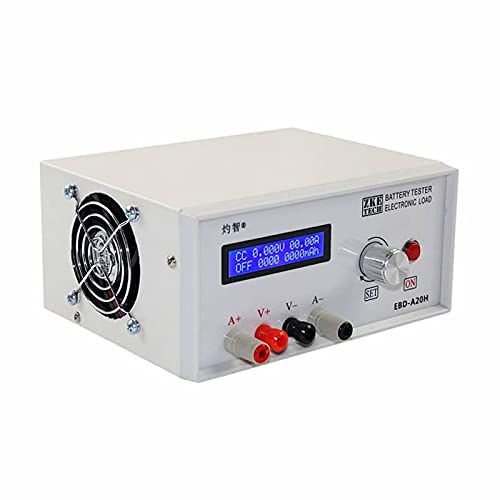

Davitu Motor Driver - EBD-A20H Battery Capacity Tester Electronic Load Power Tester Discharge Meter 20A Accuracy up to 0.01V

Product DescriptionEBD-A20H is an electronic load with a variety of discharge modes. It can be used in various battery capacity tests, power tests, support for connecting computers, and more extensions via online software.Product list1. a tester 2. a oneline test line 3. a power cord 4. a pair of test clampsProduct ParameterPower supply: 110-220VAC or 12V DCVoltage setting: 0.00-30.00V, the minimum step 0.01V Current setting: 0.1-20.00A Minimum step 0.01A (Automatic limit current when power is overrun )Test mode: DSC-CC: discharge current is constant, used to test battery capacity or supply current DSC-CP: dischage power is constant, used to simulate constant power equipment or test powerVoltage test: 0.000-4.500V (low pressure) accuracy to 0.003V, error ±0.5% 4.50V-30.00V(high presure) accuracy to 0.01V, error ± 0.5%Current test: 0.10-20.00A, accuracy to 0.01A, error ± 0.5%Capacity test: 10Ah, the resolution of 0.001Ah 10Ah-100Ah, the resolution of 0.01Ah above 100Ah, the resolution 0.1AhDischage power: Max 200W. It should be controlled within 90% for a long time working Connection: four-wire detection, voltage and current channel separate wiring, to ensure measurement accuracyLCD display: voltage, current, capacity, time so on test dataComputer Online: dedicated USB to TTL serial port (Mini USB port, not an ordinary USB cable) . curve plotting, automatic current test, calibration reference, upgrade equipmentDC version of the standard accessories (only the test clip line is selected when the configuration is selected, does not include 12V power supply and cable):Item sp

• Motor type: Stepper Motor
• Certification: NONE
• Origin: CN(Origin)
• Power supply: DC
